MAX917/MAX918/MAX919/MAX920 series nanopower comparators feature ultra-low supply current (only 380nA), guaranteed to operate down to +1.8V, and are ideal for all 2-cell battery applications, including monitoring/management, ultra-low-power systems, mobile communications, notebooks and PDAs, threshold detectors/discriminators, sensing at ground or supply line, telemetry and remote systems, medical instruments, etc.

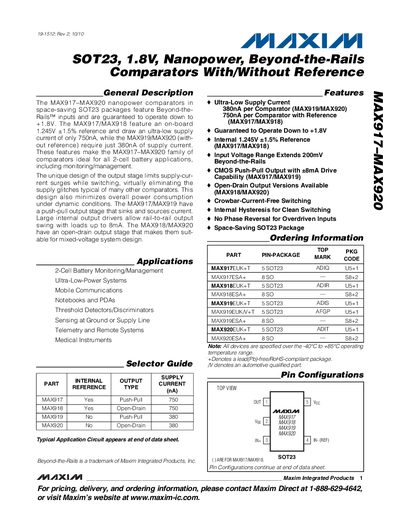

The MAX917‑MAX920 family are nanopower comparators offered in a space‑saving 5‑pin SOT23 package. They feature Beyond‑the‑Rails inputs, operate down to +1.8 V, and are available with an on‑board 1.245 V reference (MAX917/MAX918) or without reference (MAX919/MAX920). Applications include 2‑cell battery monitoring, ultra‑low‑power systems, mobile communications, notebooks, PDAs, and medical instruments.
The document provides absolute maximum ratings, detailed electrical characteristics such as supply voltage range, supply current, input offset voltage, propagation delay, and output drive capability, as well as typical operating curves, package dimensions, ordering information, and revision history.
| Supply Current (MAX917) | 750 nA |
|---|---|
| Supply Current (MAX919) | 380 nA |
| Input Offset Voltage | ≤ 10 mV |
| Output Drive Capability | ±8 mA (push‑pull) |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 5‑pin SOT23 |
The MAX917 draws about 750 nA of supply current.
They are offered in a 5‑pin SOT23 package.
The input voltage range extends 200 mV beyond the rails.
Yes, the “+” in the part number denotes a lead‑free/RoHS‑compliant package.
