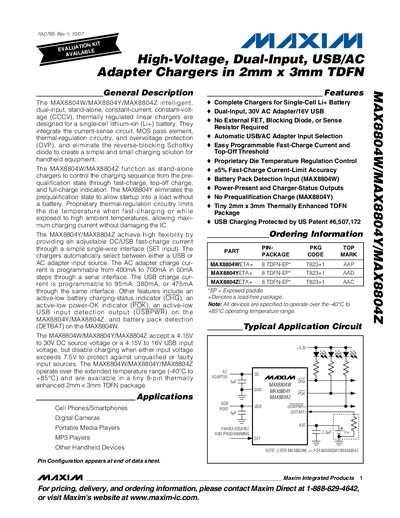

The MAX8804W/MAX8804Y/MAX8804Z are intelligent, dual-input, stand-alone, constant-current, constant-voltage (CCCV), thermally regulated linear chargers designed for a single-cell lithium-ion (Li+) battery. They integrate the current-sense circuit, MOS pass element, thermal-regulation circuitry, and overvoltage protection (OVP), and eliminate the reverse-blocking Schottky diode to create a simple and small charging solution for handheld equipment.
The MAX8804W, MAX8804Y and MAX8804Z are high‑voltage, dual‑input linear charger ICs designed for single‑cell Li+ batteries. They integrate current‑sense circuitry, MOS pass element, thermal regulation and over‑voltage protection, eliminating the need for external FETs or blocking diodes. The devices automatically select between a USB or AC adapter source and provide programmable fast‑charge currents.
The datasheet details absolute maximum ratings, electrical characteristics, typical operating curves, pin descriptions, and package dimensions for the 2 mm × 3 mm TDFN package. It also includes ordering information and revision history for reference.
| DC Input Voltage Range | 4.15 V to 30 V |
|---|---|
| USB Input Voltage Range | 4.15 V to 16 V |
| Operating Temperature Range | -40 °C to +85 °C |
| DC Charge Current Programmable Range | 400 mA to 700 mA (step 50 mA) |
| USB Charge Current Options | 95 mA, 380 mA, 475 mA |
| Package Type | 8‑pin 2 mm × 3 mm TDFN (exposed‑pad) |
It accepts a DC source voltage from 4.15 V up to 30 V.
They operate from –40 °C to +85 °C.
They are offered in an 8‑pin, 2 mm × 3 mm exposed‑pad TDFN package.
