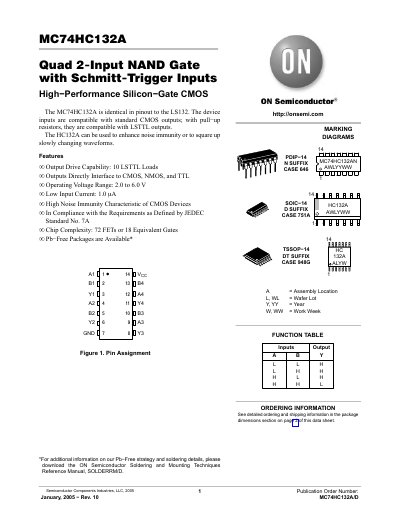

The MC74HC132A quad NAND gate provides Schmitt‑trigger inputs for enhanced noise immunity and waveform shaping. It is pin‑compatible with the LS132 and works with standard CMOS, NMOS, and TTL outputs. The device supports an operating voltage of 2.0 V to 6.0 V and can drive up to ten LSTTL loads.
Key electrical characteristics include low input current (1 µA), maximum supply current of 75 mA, and a storage temperature range of –65 °C to 150 °C. Package options include PDIP‑14, SOIC‑14, and TSSOP‑14, all available in Pb‑free versions. Ordering information and package dimensions are provided for each form factor.
| Output Drive Capability | 10 LSTTL Loads |
|---|---|
| Operating Voltage Range | 2.0 V to 6.0 V |
| Low Input Current | 1 µA |
| Maximum Supply Voltage (VCC) | 0.5 V to 7.0 V |
| Maximum Input Voltage (VIN) | 0.5 V to 7.0 V |
| Maximum Output Current per Pin | 25 mA |
| Maximum Supply Current (ICC) | 75 mA |
| Maximum Storage Temperature | -65 °C to 150 °C |
The device operates from 2.0 V to 6.0 V.
It can drive up to ten LSTTL loads.
The maximum supply current is 75 mA for VCC and GND pins.
