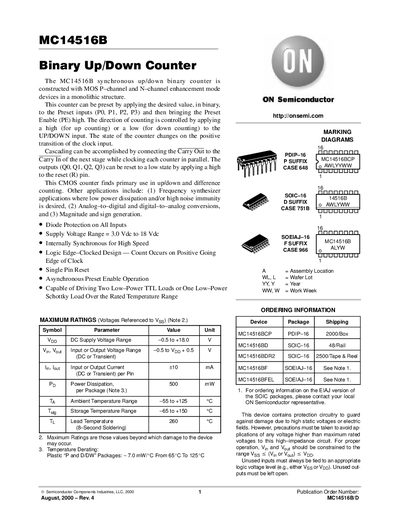

The MC14516B synchronous up/down binary counter
The MC14516B is a synchronous up/down binary counter built with MOS P‑channel and N‑channel enhancement mode devices. It can be preset via four binary inputs and supports cascading through carry‑in and carry‑out pins. The device operates from a supply voltage of 3 V to 18 V and offers both up and down counting modes.
The datasheet includes detailed pin assignments, electrical characteristics such as supply voltage range, power dissipation, temperature limits, and switching performance. Package information for PDIP‑16, SOIC‑16, and EIAJ‑16 variants is also provided, along with ordering codes and contact details for ON Semiconductor technical support.
| Supply Voltage Range | 3.0 V to 18 V |
|---|---|
| Power Dissipation | 500 mW per package |
| Ambient Temperature Range | -55 °C to +125 °C |
| Storage Temperature Range | -65 °C to +150 °C |
The device operates from 3.0 V up to 18 V.
The ambient temperature range is –55 °C to +125 °C.
The maximum power dissipation is 500 mW per package.
