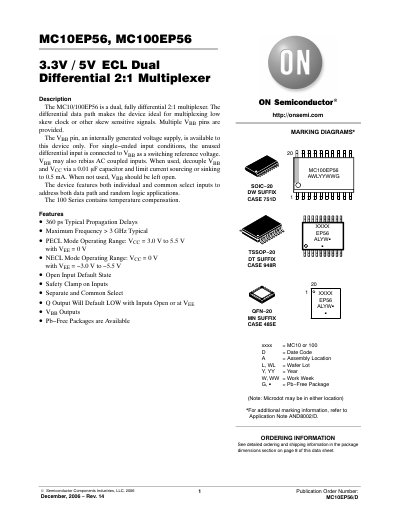

The MC10EP56 and MC100EP56 are dual, fully differential 2:1 multiplexers designed for low‑skew clock and other skew‑sensitive signals. They feature individual and common select inputs, VBB biasing, and are available in Pb‑free SOIC‑20, TSSOP‑20 and QFN‑20 packages.
The document provides electrical characteristics, maximum ratings, pin descriptions, package dimensions, ordering information and reference to application notes for ECL, PECL and NECL operating modes.
| Typical Propagation Delay | 360 ps |
|---|---|
| Maximum Frequency | > 3 GHz |
| Power Supply Current (IEE) typical | 61 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| PECL Mode VCC Range | 3.0 V to 5.5 V |
The typical propagation delay is 360 ps.
The device can operate at frequencies greater than 3 GHz.
PECL mode requires VCC between 3.0 V and 5.5 V.
The device is rated for -40 °C to +85 °C.
