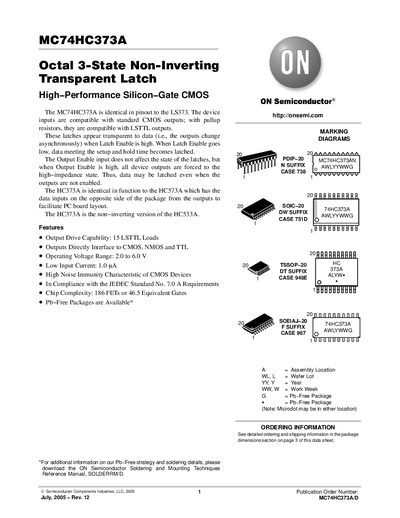

The MC74HC373A is an 8-bit 3-State Non-Inverting Transparent Latch with High-Performance Silicon-Gate CMOS.
The MC74HC373A is an octal 3‑state non‑inverting transparent latch compatible with standard CMOS and LSTTL outputs. It features a high‑performance silicon‑gate CMOS design, 15 LSTTL load drive capability, and operates from 2.0 V to 6.0 V.
The document provides detailed pin assignments, electrical characteristics, maximum ratings, timing requirements, package dimensions for PDIP‑20, SOIC‑20 and TSSOP‑20, and ordering information for various package options.
| Output Drive Capability | 15 LSTTL Loads |
|---|---|
| Operating Voltage Range | 2.0 V to 6.0 V |
| Low Input Current | 1.0 pA |
| Chip Complexity | 46.5 Equivalent Gates |
