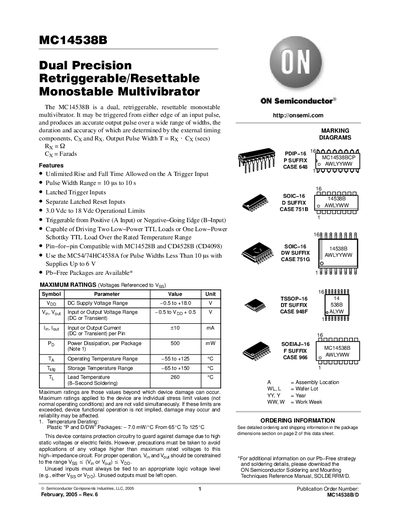

MC14538B/D Dual Precision Retriggerable/Resettable Monostable Multivibrator
The MC14538B is a dual, retriggerable, resettable monostable multivibrator that can be triggered on either edge of an input pulse. Output pulse width is set by external timing components Rx and Cx and can range from 10 µs to 10 s.
The document provides electrical and switching characteristics, maximum ratings, package dimensions, and application notes such as trigger operation, retrigger behavior, and power‑down considerations. Ordering information and package options are also listed.
| Supply Voltage Range (Vop) | -0.5 V to +18 V |
|---|---|
| Output Pulse Width Range | 10 µs to 10 s |
| Maximum Power Dissipation | 500 mW per package |
| Operating Temperature Range | -55 °C to +125 °C |
The device operates with a supply voltage from –0.5 V up to +18 V.
It can generate output pulses from 10 µs up to 10 seconds, depending on external timing components.
Maximum ratings include a supply voltage of –0.5 V to +18 V, power dissipation of 500 mW per package, and an operating temperature range of –55 °C to +125 °C.
