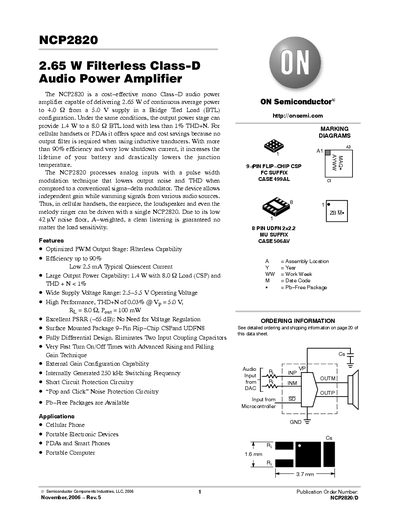

The NCP2820 is a cost-effective mono Class-D audio power amplifier capable of delivering 2.65 W of continuous average power to 4.0 Ohm from a 5.0 V supply in a Bridge Tied Load (BTL) configuration. Under the same conditions, the output power stage can provide 1.4 W to a 8.0 Ohm BTL load with less than 1% THD+N. For cellular handsets or PDAs it offers space and cost savings because no output filter is required when using inductive tranducers. With more than 90% efficiency and very low shutdown current, it increases the lifetime of your battery and drastically lowers the junction temperature. The NCP2820 processes analog inputs with a pulse width modulation technique that lowers output noise and THD when compared to a conventional sigma-delta modulator. The device allows independent gain while summing signals from various audio sources. Thus, in cellular handsets, the earpiece, the loudspeaker and even the melody ringer can be driven with a single NCP2820. Due to its low 42dB A-weighted noise floor, a clean listening is guaranteed no matter the load sensitivity.
The NCP2820 is a mono Class‑D audio power amplifier delivering up to 2.65 W continuous average power in a bridge‑tied load from a 5 V supply, with filter‑less operation and over 90 % efficiency. It features PWM output, low quiescent current, and built‑in protection such as short‑circuit and pop‑and‑click noise suppression.
Designed for cellular handsets, PDAs and other portable devices, the device supports independent gain, external gain configuration, and operates from 2.5 V to 5.5 V. It is offered in 9‑pin flip‑chip CSP and 8‑pin UDFN packages.
| Supply Voltage Range | 2.5 V – 5.5 V |
|---|---|
| Typical Efficiency | up to 90 % |
| Continuous Output Power | 2.65 W |
| Quiescent Current | 2.5 mA (typical) |
| Switching Frequency | 250 kHz |
| Thermal Shutdown Temperature | 160 °C |
It operates from 2.5 V to 5.5 V.
The device achieves up to 90 % efficiency.
The amplifier can deliver 2.65 W of continuous average power.
