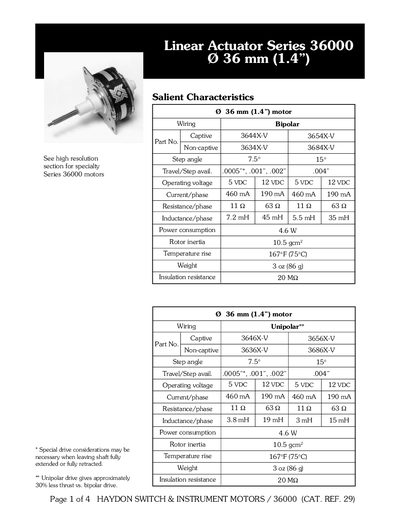

This manual provides specifications, features, and wiring information for Haydon Switch & Instrument 36000 series linear motors
The 36000 series linear actuators from Haydon Switch & Instrument Motors feature a 36 mm (1.4 in) motor with both bipolar and unipolar drive options. Special drive considerations are required when the shaft is fully extended or retracted, and unipolar drive yields about 30 % less thrust than bipolar drive.
The datasheet lists detailed electrical characteristics, part numbers for captive and non‑captive shafts, dimensional drawings, and step‑rate versus thrust curves for various drive modes. These specifications help designers select the appropriate configuration for their applications.
| Motor diameter | 36 mm (1.4 in) |
|---|---|
| Step angle (bipolar) | 75° |
| Travel per step options | .0005", .001", .002" |
| Current per phase (bipolar) | 460 mA |
| Power consumption | 4.6 W |
| Temperature rise | 167 °F (75 °C) |
| Weight | 3 oz (86 g) |
| Insulation resistance | 20 MΩ |
The bipolar drive version has a step angle of 75 degrees.
