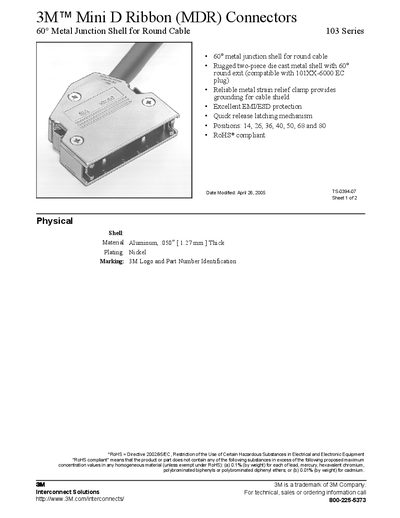

This document describes the features of 3M™ Mini D Ribbon (MDR) Connectors 60° Metal Junction Shell for Round Cable, including reliable metal strain relief clamp, excellent EMI/ESD protection, and quick release latching mechanism.
The 3M Mini D Ribbon (MDR) Connectors are designed for round cable applications with a rugged two‑piece die‑cast aluminum shell and a 60° round exit. They provide reliable metal strain‑relief grounding, EMI/ESD protection, and a quick‑release latching mechanism. Available in positions 14, 26, 36, 40, 50, 68 and 80, the connectors are RoHS compliant.
Physical details include an aluminum shell 0.050 in (1.27 mm) thick with nickel plating, and a range of contact dimensions listed by position. Ordering information is provided (e.g., part number 103XX‑A500‑00) and the document includes warranty, liability, and regulatory notices.
| Shell material | Aluminum, 0.050 in (1.27 mm) thick |
|---|---|
| Shell plating | Nickel |
| RoHS compliance | Compliant with Directive 2002/95/EC |
| Available contact positions | 14, 26, 36, 40, 50, 68, 80 |
RoHS compliance means the product does not contain lead, mercury, hexavalent chromium, polybrominated biphenyls, polybrominated diphenyl ethers, or cadmium above the limits set by Directive 2002/95/EC.
The product is warranted to be free from defects for one year from the date of purchase.
Technical, sales, or ordering information can be obtained by calling 800‑225‑5373 or visiting the 3M Interconnects website.
