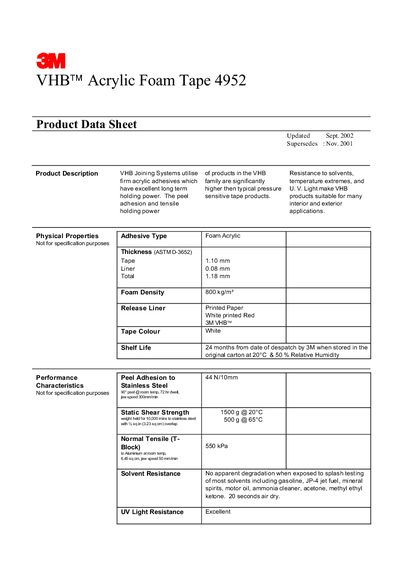

This product is a VHM polyurethane foam tape 4952 product data sheet, including product thickness, physical properties, performance characteristics and other information.
The VHB™ Acrylic Foam Tape 4952 is an acrylic foam adhesive tape with high peel adhesion and tensile holding power, suitable for interior and exterior applications. It offers resistance to solvents, temperature extremes, and UV light, making it versatile for many bonding tasks.
The sheet lists physical properties such as tape thickness (1.10 mm), liner thickness (0.08 mm), total thickness (1.18 mm) and foam density (800 kg/m³). Performance data include 44 N/10 mm peel adhesion to stainless steel, 1500 g static shear strength at 20 °C, and 550 kPa normal tensile strength. Application notes cover surface preparation, temperature limits, and handling precautions.
| Tape thickness | 1.10 mm |
|---|---|
| Liner thickness | 0.08 mm |
| Total thickness | 1.18 mm |
| Foam density | 800 kg/m³ |
| Peel adhesion to stainless steel | 44 N/10 mm (90° peel, room temp, 72 h cure) |
| Static shear strength | 1500 g @ 20 °C |
| Shelf life | 24 months from date of despatch |
Store the tape at 20 °C and 50 % relative humidity in its original carton.
The tape provides 44 N per 10 mm at a 90° peel after 72 hours cure at room temperature.
It can hold the load for 10,000 minutes under those conditions.
