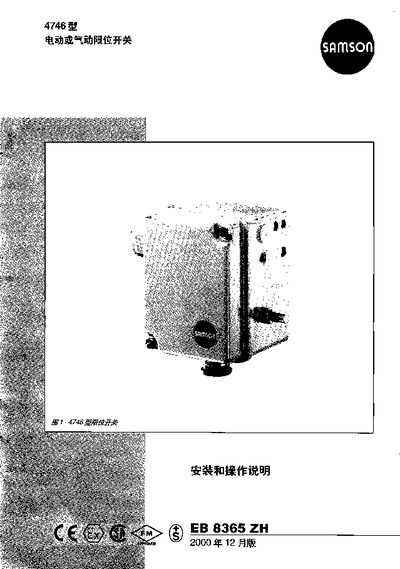

This manual provides detailed instructions for installing, wiring, and operating the 4746 series limit switches. It covers safety precautions, mounting methods, and connection details for both electric and pneumatic versions.
The document also includes technical specifications, hazardous‑location ratings, and an addendum with electrical connection guidelines for use in classified areas. This manual is written in Chinese.
| IP Rating | IP65 |
|---|---|
| Weight | 0.7 kg |
| Operating Temperature | -20°C to +70°C |
| Maximum Voltage | 30 V |
| Maximum Current | 6.9 A |
The 4746 limit switch is rated IP65.
It operates from –20 °C up to +70 °C.
Each unit weighs about 0.7 kg.
