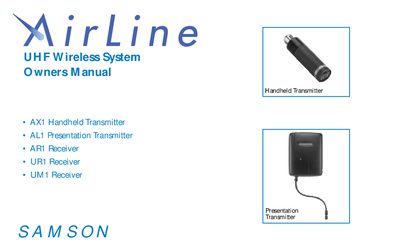

This is a SAMSON UHF Wireless System Owners Manual, introducing the features and usage methods of AX1 Handheld Transmitter, AL1 Presentation Transmitter, AR1 Receiver, UR1 Receiver and UM1 Receiver.
This document serves as the owners manual for the Samson AirLine UHF Wireless System. It covers handheld and presentation transmitters (AX1, AL1) and various receivers (AR1, UR1, UM1), offering instructions for setup, usage, and guided tours of the components. The system operates in the 801-805 MHz UHF frequency range and features proprietary technology for miniaturized circuitry and improved sound quality.
| Frequency Range | 801 - 805 MHz |
|---|---|
| Battery Type | Single tiny AAA battery |
| Typical Battery Life | 14 hours |
| AR1 Output Impedance (Unbalanced) | 5 - 10 K Ohm |
| AR1 Output Impedance (Balanced) | 600 - 2500 Ohm |
| Power Input Voltage | 12 volt |
| Power Input Current | 200 mA |
The system operates in the 801 - 805 MHz UHF frequency range.
The transmitters operate on a single tiny AAA battery.
The typical battery life is 14 hours.
The AR1 receiver requires a 12 volt 200 mA power adapter.
