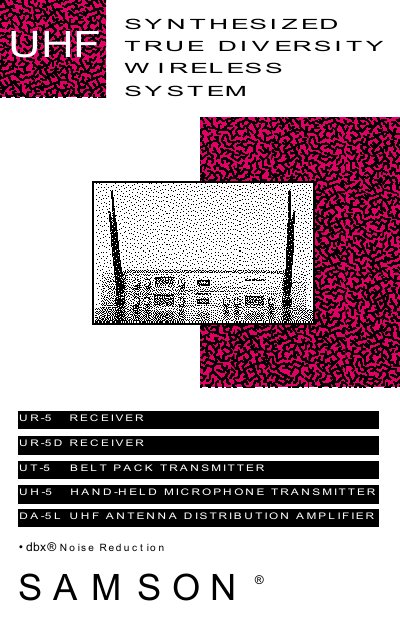

This document introduces the features of Samson UHF Synthesized True Diversity Wireless System, including system composition, usage methods and precautions.
This user manual provides instructions for the Samson UHF Synthesized True Diversity Wireless System, which includes the UR-5 and UR-5D receivers, UT-5 beltpack transmitter, UH-5 hand-held transmitter, and the optional DA-5L antenna distribution amplifier. The system features true diversity technology to eliminate interference and phase cancellation, along with built-in dbx noise reduction for clear audio.
| Type of Reception | 110KF3E FM |
|---|---|
| Signal Sensitivity | 15 dB micro |
| Stability | 50 ppm |
| Spurious Rejection | -70 dBm |
| Antenna Terminals | 50 Q, connector BNC |
| Antenna Type | 1/42 ^X sleeve (dipole) |
| Bandwidth (Selectivity) | 150 kHz @ 60 dB |
| Total Harmonic Distortion | Less than .5% |
| Receiver Weight | 2.5 Kg |
| Frequency Range (DA-5L) | 794 MHz - 806 MHz |
| Gain (DA-5L) | 0dB+2.5dB |
| NF (DA-5L) | Less than 10 dB |
| Maximum Input (DA-5L) | 110 dB uV |
| Operating Temperature (DA-5L) | 0?Cto+50? C |
| Power Rating (DA-5L) | 120 V, 50/60 Hz, 3 W |
| Dimensions (DA-5L) | 482 x 44 x 146 mm |
| Weight (DA-5L) | Approx. 2.0 Kd |
It virtually eliminates interference and phase cancellation problems by automatically switching to the receiver with the clearest and strongest reception.
Up to 11 channels are available for simultaneous use within the 10 different frequency groups.
The UT-5 and UH-5 transmitters both accept standard 9-volt alkaline batteries.
The UR-5 and UR-5D receivers can accept any AC power voltage from 100 - 250 volts without changing a switch.
