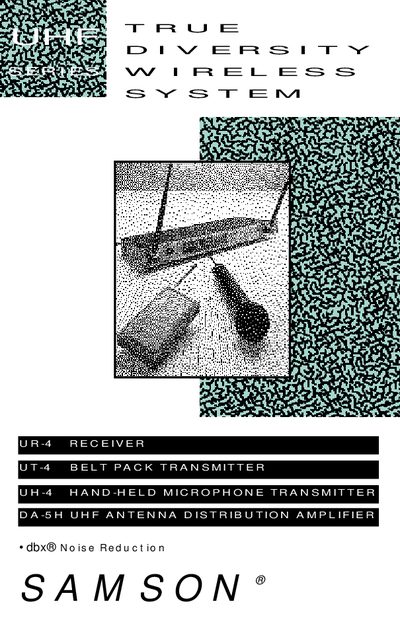

This document is the user manual for Samson UHF Series wireless system. It introduces the system composition, features and usage methods.
The document provides a comprehensive guide to the Samson UHF Series True Diversity Wireless System. It details the features of the UR-4 receiver, UT-4 belt-pack transmitter, UH-4 hand-held microphone transmitter, and the optional DA-5H UHF Antenna Distribution Amplifier. The text explains how true diversity technology works to eliminate interference and phase cancellation while maximizing range.
The manual includes step-by-step instructions for setting up and using the system components. It features guided tours of the front and rear panels for each device, wiring guides for lavalier microphones, troubleshooting tips, a glossary of terms, and full technical specifications.
| Number of Channels | Six |
|---|---|
| Signal Sensitivity | 15 dBu @ s/n 60 dB |
| Stability | 50 ppm |
| Spurious Rejection | -70 dBm |
| Total Harmonic Distortion | Less than .5% |
| Weight (Receiver) | 2.9 Kg |
| Frequency Range (DA-5H) | 947 MHz - 952 MHz |
| Gain (DA-5H) | 0dB+2.5dB |
A single chassis houses two discrete receivers tuned to the same frequency but using independent antennas, automatically switching to the clearest signal.
Both the UT-4 and UH-4 transmitters accept standard 9-volt alkaline batteries.
Yes, built-in dbx® noise reduction circuitry is included in both the transmitter and receiver to ensure clear sound with minimized background noise.
