This document is about the user manual of a certain brand and model of product.

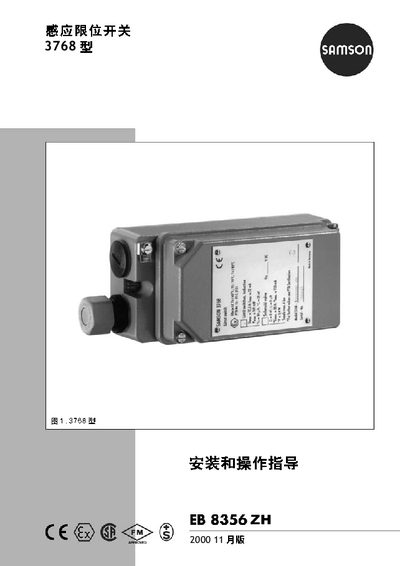

This guide describes the structure, working principle and technical data of the Samson 3768 inductive limit switch. The device is designed for use with pneumatic control valves and can be connected directly to a SAMSON 3277 actuator or via a NAMUR (DIN IEC 534) adapter.
Detailed installation procedures are provided, including direct mounting on the actuator, use of adapter boxes, adjustment of travel limits, and wiring of signal pressure to the isolation amplifier. The document also lists required accessories and part numbers for various mounting configurations. This manual is written in Chinese.
| Travel range (direct) | 7.5‑30 mm |
|---|---|
| Travel range (DIN IEC 534) | 5.5‑120 mm |
| Rotation angle | 0.90 ° |
| Allowed ambient temperature | -20 °C to +80 °C |
| Signal voltage options | 6 VDC, 12 VDC, 24 VDC |
| Signal pressure range | 0.4‑2 bar |
The device can operate from –20 °C up to +80 °C.
It supports 6 VDC, 12 VDC, and 24 VDC signal voltages.
For direct mounting the travel is 7.5‑30 mm; with a DIN IEC 534 adapter it is 5.5‑120 mm.
