The features and characteristics of 3M™ Mini D Ribbon MDR Connectors .050″ Boardmount Through-Hole Rt. Angle Receptacle – Shielded, SCSI-2 Layout 102 Series are as follows: The product is made of glass reinforced polyester insulation material with UL 94V-0 flame retardant rating. It has a black exterior, copper alloy contacts and nickel plating. The current rating is 1A, the insulation resistance is greater than 5×108Ω, the rated voltage is 500 VDC, and the temperature rating is 55°C to 105°C.

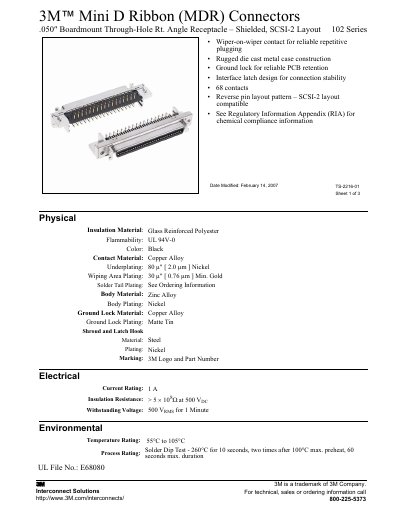

The 3M Mini D Ribbon (MDR) connector is a .050" board‑mount, through‑hole, right‑angle receptacle with a shielded design compatible with the SCSI‑2 layout. It features a rugged die‑cast metal case, 68 contacts, and a reverse pin layout pattern.
Key specifications include a 1 A current rating, insulation resistance greater than 5 × 10⁸ Ω at 500 VDC, and a temperature rating of 55 °C to 105 °C. The connector complies with UL 94V‑0 flammability, RoHS directives, and includes detailed mechanical dimensions and recommended PCB layout guidelines.
| Insulation Material | Glass Reinforced Polyester |
|---|---|
| Flammability Rating | UL 94V‑0 |
| Contact Material | Copper Alloy |
| Current Rating | 1 A |
| Insulation Resistance | > 5 × 10⁸ Ω at 500 VDC |
| Withstanding Voltage | 500 VRMS for 1 minute |
| Number of Contacts | 68 |
The connector is rated for a maximum current of 1 A.
It provides 68 contacts.
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
The insulation resistance exceeds 5 × 10⁸ Ω at 500 VDC.
