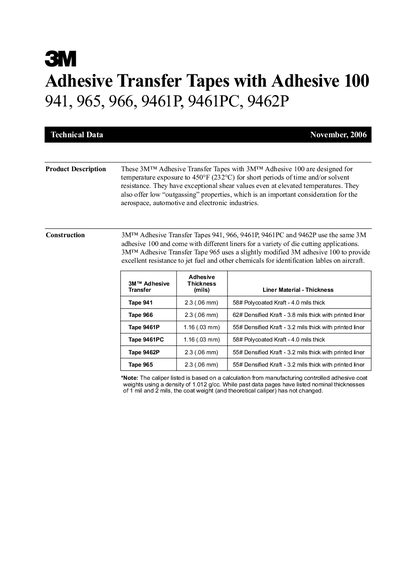

3M™ Adhesive Transfer Tapes with Adhesive 100 941, 965, 966, 9461P, 9461PC, 9462P are designed for temperature exposure to 450°F (232°C) for short periods of time and/or solvent resistance. They have exceptional shear values even at elevated temperatures. They also offer low “outgassing” properties, which is an important consideration for the aerospace, automotive and electronic industries.
The 3M Adhesive Transfer Tapes with Adhesive 100 are pressure‑sensitive tapes designed for high‑temperature exposure and chemical resistance. They are offered in several models (941, 965, 966, 9461P, 9461PC, 9462P) with different liner types for die‑cutting applications and are suitable for aerospace, automotive, and electronic industries.
The data sheet provides adhesive thickness, performance metrics such as peel adhesion and static shear, physical dimensions, storage recommendations, and certification information. It also includes application guidance, including temperature limits, cleaning procedures, and dispenser selection.
| Maximum short‑period temperature | 450 °F (232 °C) |
|---|---|
| Peel adhesion (ASTM D‑3330) | 90° peel, 12"/min |
| Static shear at 450 °F | 400 g for 10,000 min |
| Tape 941 thickness | 2.3 mil (0.06 mm) |
| Core size | 3 in paper core |
| Standard length | 180 yards |
| Recommended storage temperature | 72 °F (22 °C) |
The adhesive can be exposed to temperatures up to 450 °F (232 °C) for short periods.
Tape 965 uses a modified adhesive 100 that provides excellent resistance to jet fuel.
Store them at room temperature, 72 °F (22 °C) and 50 % relative humidity in a plastic bag.
Each roll is supplied at a standard length of 180 yards.
