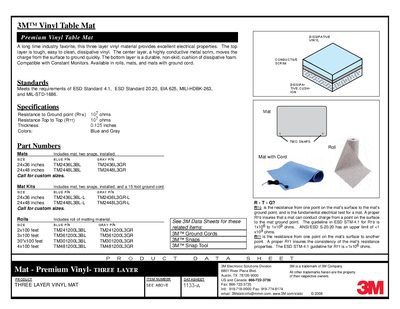

This PDF document provides product data for the 3M™ Premium Vinyl Table Mat, a three-layer vinyl mat with excellent electrical properties. The mat meets the requirements of various standards and is a long-time industry favorite. The top layer is a tough and easy-to-clean dissipative vinyl, the center layer is a highly conductive metal scrim for quick charge dissipation, and the bottom layer is a durable non-skid cushion of dissipative foam. The mat is compatible with constant monitors and is available in rolls, mats, and mats with ground cord.
The 3M Vinyl Table Mat is a premium three‑layer vinyl product designed for electrostatic discharge (ESD) control. The top layer is a tough, easy‑to‑clean dissipative vinyl, the middle layer is a highly conductive metal scrim that quickly moves charge to ground, and the bottom layer is a durable, non‑skid foam cushion.
The mat meets several ESD standards and is offered in rolls, mats, and kits with ground cords. It is supplied in blue and gray colors, with standard sizes such as 24×36 in and 24×48 in, and can be custom‑ordered. Technical specifications include a resistance to ground of 10⁷ Ω, a thickness of 0.125 in, and compliance with ESD Standard 4.1, 20.20, EIA 625, MIL‑HDBK‑263, and MIL‑STD‑1686.
| Resistance to Ground point (Rte) | 107 ohms |
|---|---|
| Resistance Top to Top (RTT) | 107 ohms |
| Thickness | 0.125 inches |
| Colors | Blue and Gray |
| Standard Size 24×36 in | TM2436L3BL / TM2436L3GR |
| Standard Size 24×48 in | TM2448L3BL / TM2448L3GR |
The resistance to ground point (Rte) is 10⁷ Ω (listed as 107 ohms).
It meets ESD Standard 4.1, ESD Standard 20.20, EIA 625, MIL‑HDBK‑263, and MIL‑STD‑1686.
The mat is 0.125 inches thick.
The mat is offered in blue and gray.
