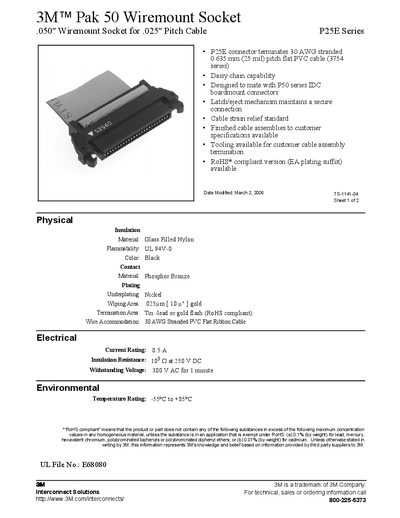

3M™ Pak 50 Wiremount Socket .050″ Wiremount Socket for .025″ Pitch Cable P25E Series is a connector produced by 3M Company. It is mainly used for 30 AWG stranded 0.635 mm (25 mil) pitch flat PVC cable (3754 series). It supports Daisy chain connection and is compatible with P50 series IDC boardmount.
The Pak 50 Wiremount Socket from 3M provides a secure .050" wiremount connection for .025" pitch flat PVC ribbon cables. It features a latch/eject mechanism, strain‑relief standard, and is available in RoHS‑compliant versions.
Technical specifications include glass‑filled nylon insulation, UL 94V‑0 flammability rating, phosphor bronze contacts with nickel underplating, and options for gold or tin‑lead termination. Electrical ratings are 0.5 A current, 10 MΩ insulation resistance at 250 VDC, and 300 V AC withstanding voltage. The socket operates from –55 °C to +85 °C and supports 30 AWG stranded cable.
| Insulation Material | Glass Filled Nylon |
|---|---|
| Flammability Rating | UL 94V-0 |
| Color | Black |
| Contact Material | Phosphor Bronze |
| Underplating | Nickel |
| Wiping Area | .025 µm gold |
| Termination Area | Tin‑lead or gold flash (RoHS compliant) |
| Wire Accommodation | 30 AWG stranded PVC flat ribbon cable |
| Current Rating | 0.5 A |
| Insulation Resistance | 10 MΩ at 250 VDC |
| Withstanding Voltage | 300 V AC for 1 minute |
| Temperature Rating | -55 °C to +85 °C |
The socket is rated for a maximum current of 0.5 A.
Yes, a RoHS‑compliant version is available.
The insulation is made of glass‑filled nylon.
The socket can operate from –55 °C up to +85 °C.
