VHB Acrylic Foam Tape 4905F is a clear acrylic VHB tape, ideal for bonding transparent materials or applications where a colored bond line is unacceptable. These tapes have slightly lower peel, tensile, and shear performance compared to other VHB tapes due to their softness.
The 3M VHB 4905F is a clear acrylic foam tape designed for bonding transparent materials and high‑energy surfaces such as glass, acrylic sheet and metals. It offers lower peel, tensile and shear performance than other VHB tapes due to its inherent softness, and is not guaranteed to be optically clear.

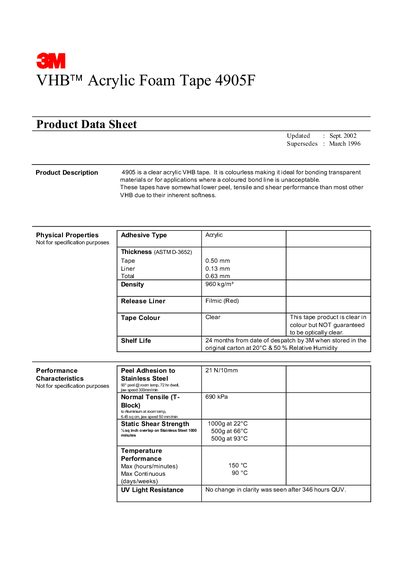

The sheet provides specifications for thickness, density, peel adhesion, tensile strength, shear strength, temperature limits and UV resistance, as well as recommended application temperatures (20 °C‑40 °C), surface preparation, and bonding limitations for low‑energy plastics and certain metals.
| Tape thickness | 0.50 mm |
|---|---|
| Liner thickness | 0.13 mm |
| Total thickness | 0.63 mm |
| Density | 960 kg/m³ |
| Shelf life | 24 months (stored at 20 °C & 50 % RH) |
| Peel adhesion | 21 N/10 mm |
| Normal tensile strength | 690 kPa |
| Static shear strength | 1000 g at 22 °C |
| Maximum continuous temperature | 90 °C |
| Maximum temperature (short term) | 150 °C |
| UV light resistance | No change after 346 hours QUV |
The ideal application temperature range is 20 °C to 40 °C.
Bonding to polypropylene is not recommended.
The tape has a shelf life of 24 months when stored in the original carton at 20 °C and 50 % relative humidity.
The tape can be used continuously up to 90 °C.
