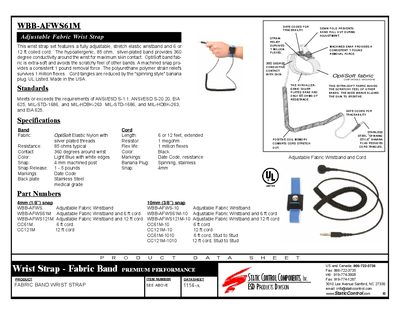

This is a data sheet of the wrist strap product of Static Control Components, Inc. The product name is Wrist Strap - Fabric Band, the model is WBB-AFWS61M, the features are adjustable fabric wristband and 6 or 12 ft coiled cord, with 360 degrees conductivity, it meets ANSI/ESD S-1.1, ANSI/ESD S-20.20, EIA 625, MIL-STD-1686, and MIL-HDBK-263 standards.
The WBB-AFWS61M is an adjustable fabric wrist strap with a hypoallergenic, silver‑plated band that offers 85 Ω resistance and 360° skin contact. It includes a 6 ft (or optional 12 ft) coiled cord, a machined snap with a 1 lb removal force, and a stainless‑steel "spinning" banana plug to reduce cord tangles.
The strap meets ANSI/ESD S‑1.1, ANSI/ESD S‑20.20, EIA‑625, MIL‑STD‑1686 and MIL‑HDBK‑263 standards. Part numbers are provided for the band and cord configurations, and the product is UL listed and made in the USA.
| Band material | OptiSoft Elastic Nylon |
|---|---|
| Band length | 6 or 12 feet |
| Band resistance | 85 ohms typical |
| Resistor value | 1 megohm |
| Flex life | 1 million flexes |
| Snap removal force | 1 lb |
| Banana plug type | Spinning, stainless |
| Band color | Black (or Light Blue with white edges) |
The band has a typical resistance of 85 ohms.
The standard cord length is 6 feet; a 12‑foot version is also available.
It meets ANSI/ESD S‑1.1, ANSI/ESD S‑20.20, EIA‑625, MIL‑STD‑1686 and MIL‑HDBK‑263.
The machined snap provides a consistent 1 pound removal force.
