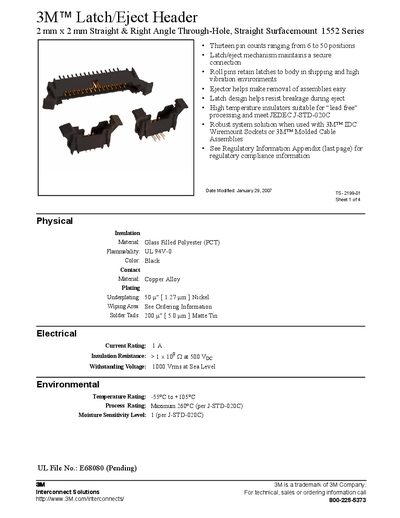

3M 1552 Series Latch/Eject Header Datasheet

About this manual

The 3M Latch/Eject Header offers both straight and right‑angle through‑hole and surface‑mount configurations. The latch/eject mechanism secures connections during vibration and enables easy removal, while high‑temperature insulators support lead‑free processing.

Technical data include insulation material, electrical current rating, temperature range, plating options and detailed dimensions. The product meets EU and China RoHS requirements and includes ordering information for various plating finishes.

What's inside

• Physical Characteristics
• Electrical Ratings
• Environmental Ratings
• Dimensions
• Ordering Information
• Regulatory Information

Specifications

Frequently asked questions

Is the 3M latch/eject header RoHS compliant?

Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
