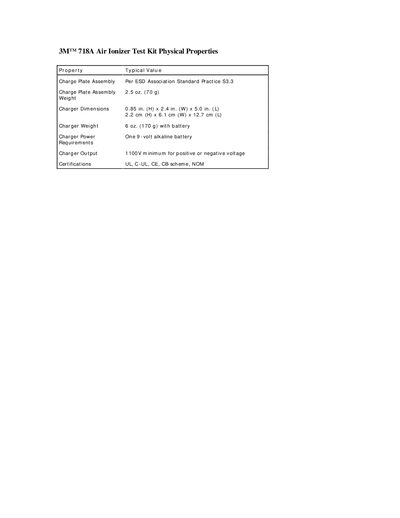

This document describes the physical properties of the 3M™ 718A Air Ionizer Test Kit, including the weight and dimensions of the charge plate assembly, the weight, power requirements, and output voltage of the charger.
This sheet provides the key physical characteristics of the 3M 718A Air Ionizer Test Kit, including dimensions, weight, power requirements, and certifications. The data are presented as typical values for reference.
The kit complies with ESD Association standards and carries multiple safety certifications, making it suitable for use in environments requiring controlled ionization testing.
| Weight | 2.5 oz. (70 g) |
|---|---|
| Charger Dimensions (inches) | 0.85 in. (H) x 2.4 in. (W) x 5.0 in. (L) |
| Charger Dimensions (metric) | 2.2 cm (H) x 6.1 cm (W) x 12.7 cm (L) |
| Charger Weight | 6 oz. (170 g) with battery |
| Charger Power Requirements | One 9‑volt alkaline battery |
| Charger Output | 1100 V minimum for positive or negative voltage |
| Certifications | UL, C‑UL, CE, CB‑scheme, NOM |
The kit weighs 2.5 oz. (70 g).
The charger is powered by one 9‑volt alkaline battery.
It is certified UL, C‑UL, CE, CB‑scheme, and NOM.
