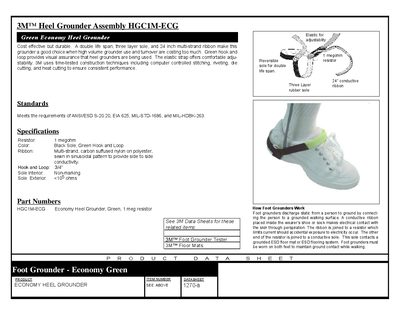

The 3M™ Economy Heel Grounder is an economical yet durable heel grounder that meets the requirements of ANSI/ESd S-20.20, EIA 625, MIL-STD-1686, and MIL-HDBK-263. It has a double life span, a three-layer sole, and a 24-inch multi-strand ribbon, making it a good choice for high-volume grounder use and turnover. The green hook and loop provides visual assurance that heel grounders are being used. The elastic strap offers comfortable adjustment. 3M uses time-tested construction techniques including computer controlled stitching, riveting, die cutting, and heat cutting to ensure consistent performance.
The Heel Grounder Assembly provides a reliable way to discharge static from a person to ground. It features a three‑layer sole, a 24‑inch multi‑strand ribbon, and a green hook‑and‑loop strap for visual assurance and comfort. The elastic strap adds stability while the construction uses computer‑controlled stitching, riveting, die‑cutting, and heat‑cutting for consistent performance.
The product complies with ANSI/ESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263 standards. Key specifications include a 1 MΩ resistor, non‑marking sole interior, <10 Ω exterior resistance, and a 3/4" hook‑and‑loop attachment.
| Resistor | 1 megohm |
|---|---|
| Color | Black Sole, Green Hook and Loop |
| Ribbon | Multi‑strand, carbon‑suffused nylon on polyester, sewn in sinusoidal pattern |
| Hook and Loop size | 3/4" |
| Sole interior | Non‑marking |
| Sole exterior resistance | <10 Ω |
It meets the requirements of ANSI/ESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263.
