Scotch Super 88 Electrical Tape is a premium grade, 0.2mm thick, all-weather vinyl insulating tape. It is designed to perform continuously in a temperature ambient of up to 105�C (220�F). The tape has excellent resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions (including ultraviolet exposure). The combination of elastic backing and aggressive adhesive provides moisture-tight electrical and mechanical protection with minimum bulk. Super 88 is an Underwriters’ Laboratories Listed and Canadian Standards Association Certified “Insulating Tape”.
The Super 88 Vinyl Electrical Tape is a premium‑grade, 0.216 mm thick PVC tape with a pressure‑sensitive rubber adhesive. It provides continuous insulation up to 105 °C (220 °F) and remains pliable down to –18 °C (0 °F), making it suitable for indoor and outdoor applications.

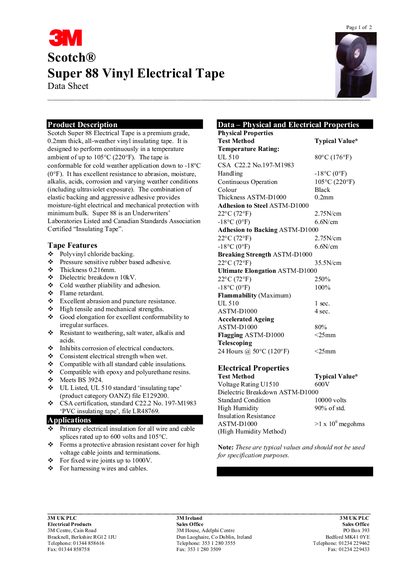

The sheet details physical and electrical properties, installation techniques, and maintenance guidelines, and confirms UL 510 and CSA C22.2 certifications for use on wire splices and high‑voltage cable repairs.
| Thickness | 0.216 mm |
|---|---|
| Dielectric breakdown (standard condition) | 10 kV |
| Continuous operating temperature | 105 °C (220 °F) |
| Voltage rating | 600 V |
| Flammability (UL 510) | 1 sec |
The tape is rated for 600 V according to UL 510.
Yes, it is UL listed under UL 510 as a flame‑retardant, cold‑ and weather‑resistant insulating tape.
Typical dielectric breakdown is 10 kV under standard conditions.
