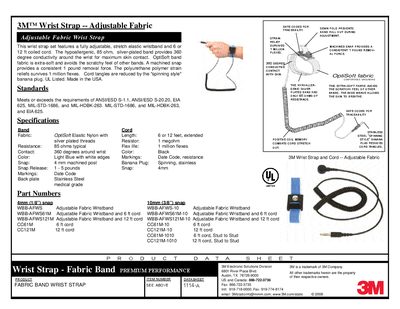

This is a product data sheet for the 3M™ Adjustable Fabric Wrist Strap. The wrist strap meets or exceeds the requirements of ANSI/ESD S-1.1, ANSI/ESD S-20.20, EIA 625, MiL-std-1686, and MiL-HdbK-263. It features a fully adjustable, stretch elastic wristband and a 6 or 12 ft coiled cord. The hypoallergenic silver-plated band provides 360 degree conductivity for maximum skin contact. The Optisoft fabric is extra-soft and avoids any discomfort. The strain relief is designed to withstand 1 million flexes. Cord tangles are reduced by the spinning style banana plug. The product is UL Listed and made in the USA.
The 3M Adjustable Fabric Wrist Strap features a stretch‑elastic OptiSoft nylon band with a silver‑plated conductive thread, offering 360° skin contact and a hypoallergenic surface. It is available with 6 ft or 12 ft coiled cords and includes a machined 4 mm snap that provides a consistent 1 lb removal force, as well as a stainless‑steel spinning banana plug to reduce cord tangles.
The strap meets or exceeds ANSI/ESD S‑1.1, ANSI/ESD S‑20.20, EIA‑625, MIL‑STD‑1686, and MIL‑HDBK‑263 standards. Part numbers differentiate the length and snap options, such as WBB‑AFWS61M for the 6 ft version and WBB‑AFWS121M for the 12 ft version.
| Fabric | OptiSoft Elastic Nylon |
|---|---|
| Length | 6 ft or 12 ft |
| Resistance | 85 ohms typical |
| Flex life | 1 million flexes |
| Contact coverage | 360 degrees around wrist |
| Snap release force | 1 – 5 pounds |
| Snap size | 4 mm |
| Banana plug type | Spinning, stainless |
The strap has a typical resistance of 85 ohms.
It is rated for 1 million flexes.
It meets ANSI/ESD S‑1.1, ANSI/ESD S‑20.20, EIA‑625, MIL‑STD‑1686, and MIL‑HDBK‑263.
