3M Speciality Respirators Data Sheet

The 3M Speciality range provides lightweight, effective, comfortable and hygienic respiratory protection against dusts and mists

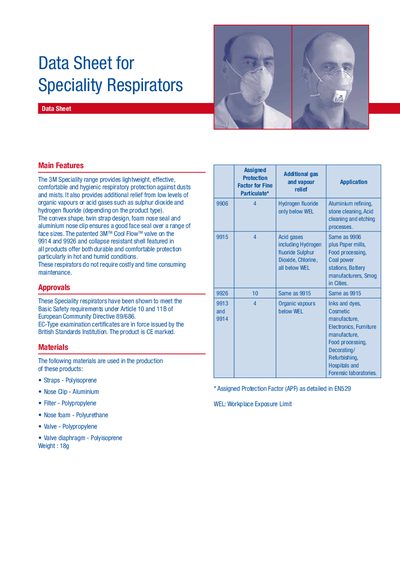

3M Speciality Respirators Data Sheet - cover page
Brand
3M
Category
Other products
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
565 KB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
19A4E0465ACD4CB7C0A9B0FDAD6B62D5

About this manual

The 3M Speciality respirators are lightweight, comfortable devices that protect against dust, mists, low levels of organic vapours and certain acid gases. They feature a convex shape, twin‑strap design, foam nose seal, aluminium nose clip and the patented 3M™ Cool Flow™ valve for low breathing resistance.

The respirators meet EN149:2001 performance categories (FFP1 for models 9906, 9913, 9914, 9915 and FFP2 for model 9926) and are CE‑marked. The sheet includes material composition, weight, fitting instructions and safety warnings.

What's inside

  • Main Features
  • Approvals
  • Materials
  • Standards
  • Correct Usage
  • Fitting instructions for valved & unvalved respirators
  • Warnings

Specifications

Weight18 g
EN149:2001 performance category (FFP1)Models 9906, 9913, 9914, 9915
EN149:2001 performance category (FFP2)Model 9926
Maximum total inward leakage (FFP1)22 %
Maximum total inward leakage (FFP2)8 %
Maximum filter penetration (FFP1)20 %
Maximum filter penetration (FFP2)6 %
Breathing resistance at 30 l/min (FFP1)≤ 0.6 mbar
Breathing resistance at 30 l/min (FFP2)≤ 0.7 mbar
Flammability test temperature800 °C ± 50 °C
CE markingYes

Frequently asked questions

What protection level does model 9926 provide?

Model 9926 is classified as FFP2 under EN149:2001.

How can I check the seal of the respirator before use?

Cover the front with both hands, inhale sharply and feel for negative pressure; if leakage is detected, adjust the straps and repeat until a proper seal is achieved.

What materials are used in the construction of the respirator?

Straps are polyisoprene, the nose clip is aluminium, the filter and valve are polypropylene, the nose foam is polyurethane, and the valve diaphragm is polyisoprene.

What is the weight of the 3M Speciality respirator?

Each respirator weighs 18 grams.
