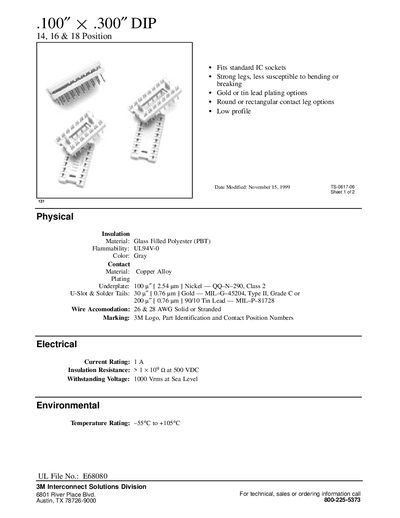

This document describes the features and characteristics of the .100″ � .300″ DIP 14, 16, and 18 position TS-0617-06 product from 3M Interconnect Solutions Division, including compatibility with standard IC sockets, strong legs, gold or tin lead plating options, round or rectangular contact leg options, low profile, and physical insulation material.
The 3M 100"x300 DIP connector is a low‑profile, high‑density interconnect designed for standard IC sockets. It is offered in 14, 16, and 18‑position configurations with optional round or rectangular contact legs and a variety of plating options.
The datasheet provides detailed physical, electrical and environmental specifications, as well as ordering part numbers and contact‑tail designs for both gold and tin‑lead plated versions.
| Package size | 100" x .300" DIP |
|---|---|
| Positions | 14, 16 & 18 |
| Insulation material | Glass Filled Polyester (PBT) |
| Flammability rating | UL94V‑0 |
| Contact material | Copper alloy |
| Insulation resistance | > 1 × 10⁰ Ω at 500 VDC |
| Withstanding voltage | 1000 V rms at sea level |
| Operating temperature range | -55 °C to +105 °C |
| Wire accommodation | 26 & 28 AWG solid or stranded |
It is rated for operation from –55 °C up to +105 °C.
It is available in 14‑, 16‑, and 18‑position versions.
