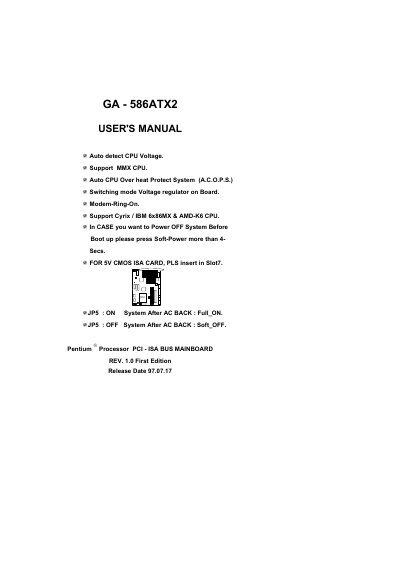

This document describes the features and characteristics of GA-586ATX2 motherboard, including auto detect CPU voltage, support for MMX CPU, and auto CPU overheat protect system.
This manual covers the quick installation process for the GA‑586ATX2 motherboard, including detailed CPU jumper settings for a wide range of supported processors such as Pentium, MMX, Cyrix/IBM 6x86MX and AMD‑K6. It also describes the board's features like auto‑detect CPU voltage, switching‑mode voltage regulator, and the Auto CPU Overheat Protect System (A.C.O.P.S.).
Additional sections include BIOS default drive tables, FCC compliance information, and a problem‑sheet for recording system configuration and troubleshooting data. The document is intended for end‑users and system integrators who need to set up and maintain the motherboard safely.
| Auto CPU Overheat Protect System | A.C.O.P.S. |
|---|---|
| Voltage Regulator | Switching mode on board |
| Modem‑Ring‑On Feature | Enabled |
Press the Soft‑Power button for more than 4 seconds.
Insert it into Slot 7.
It confirms the equipment meets Class B digital device limits under FCC Part 15 and must not cause harmful interference.
