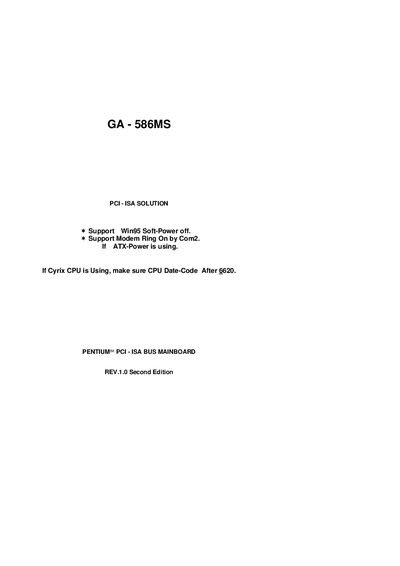

GA GA-586MS PCI-ISA Bus Mainboard Quick Installation Guide

GA-586MS is a Pentium PCI-ISA bus mainboard from ASUS

Brand: GA
Category: Other Computer Accessories
Document type: Quick Start Guide
Language: English
Pages: 93
File format: PDF
File size: 399 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: F962F9F211660764E3DDB3B28B260B32
PDF: GA GA-586MS PCI-ISA Bus Mainboard Quick Installation Guide PDF

About this manual

This guide provides step‑by‑step instructions for installing the GA‑586MS PCI‑ISA bus mainboard. It includes tables of jumper settings for a wide range of CPUs, BIOS default options, and troubleshooting appendices.

The document also contains BIOS default drive tables (Appendix C) and a problem‑sheet form (Appendix D) to help users record system configuration and resolve common issues.

What's inside

Quick Installation Guide
CPU Jumper Settings
BIOS Default Drive Table
Problem Sheet
Appendix C
Appendix D

Specifications

Supported CPUs	Intel Pentium 75‑200 MHz, P54CT, P55C, AMD K5, Cyrix 6x86

Frequently asked questions

What jumper settings are required for an Intel Pentium 100 MHz CPU?

Set JP5 to 2‑3, JP8 to 1‑2, JP7 to 4‑7, JP1 to 5‑8, and JP35 to 6‑9.

Where can I find the BIOS default drive table for this mainboard?

The BIOS default drive table is listed in Appendix C on page 91.
