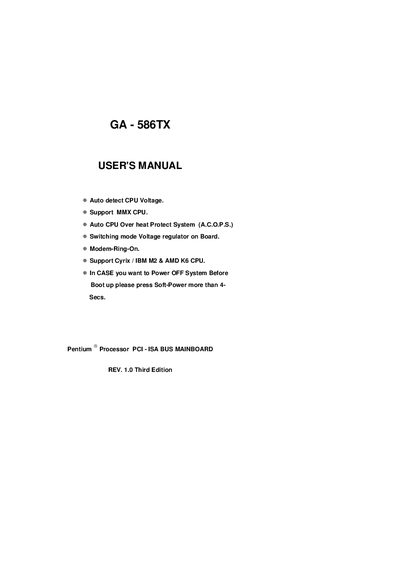

This document is the user manual of GA-586TX motherboard. It mainly introduces the features and characteristics of the motherboard, including support MMX CPU, auto detect CPU voltage, auto CPU over heat protect system (A.C.O.P.S.), switching mode voltage regulator, Modem-Ring-On, support Cyrix/IBM M2 and AMD K6 CPU.
This manual covers the features and setup of the GA‑586TX motherboard, including supported CPUs such as Pentium, Intel MMX, AMD K6, and Cyrix/IBM M2 processors, as well as voltage regulation and power‑off procedures. Detailed CPU switch settings and quick‑installation instructions are provided to help users configure the board for various processor speeds.
The document also includes the FCC compliance statement for Class B digital devices, safety warnings, and a troubleshooting appendix with a problem‑sheet for diagnosing common issues. Users are advised on how to reduce radio‑frequency interference and how to properly power off the system before booting.
| Product type | Motherboard |
|---|---|
| Supported CPUs | Pentium, Intel MMX, AMD K6, Cyrix/IBM M2 |
| FCC classification | Class B digital device |
Press the Soft‑Power button for more than 4 seconds.
Reorient or relocate the receiving antenna, move the equipment to a different circuit, or consult a technician.
