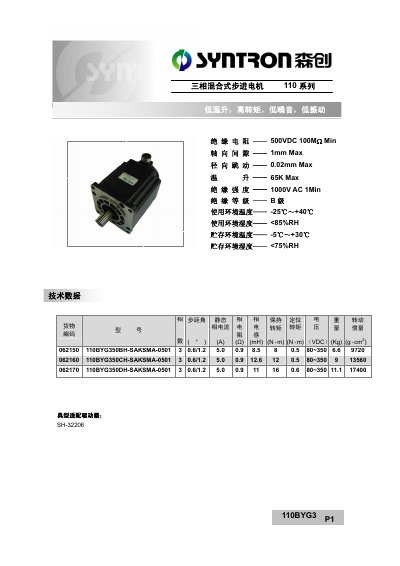

The technical parameters of 110BYG3 three-phase hybrid stepping motor, including model, step angle, static phase current, phase resistance, phase inductance, holding torque, positioning torque, voltage, weight, rotational inertia, etc.
The 110 series hybrid stepper motor is a three‑phase device with specifications such as 500 VDC insulation resistance, 1 mm axial clearance, and a temperature rise limit of 65 K. It is designed for operating temperatures from –25 °C to +40 °C and humidity below 85 %RH.
The document includes technical data tables, model descriptions, wiring diagrams, installation precautions, and manufacturer contact information. Typical compatible driver is the SH‑32206, and wiring options include lead‑wire (L) and aviation connector (A). This manual is written in Chinese.
| Insulation resistance | 500 VDC, 100 MΩ min |
|---|---|
| Axial clearance | 1 mm max |
| Radial runout | 0.02 mm max |
| Temperature rise | 65 K max |
| Insulation strength | 1000 VAC min |
| Insulation class | B |
| Operating temperature range | -25 °C to +40 °C |
The motor can be wired with lead‑wire (L) using a 3‑phase 3‑wire connection, or with an aviation connector (A).
The motor can operate from –25 °C up to +40 °C.
A typical compatible driver is the SH‑32206.
Install the front cover stop, ensure concentricity of motor and load shafts, avoid mis‑wiring, and have the manufacturer pre‑wire the motor if required.
