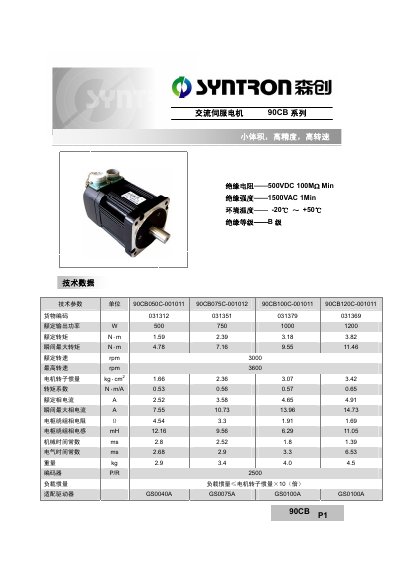

90CB series servo motors have a rated output power of 500W-1200W, a rated speed of 3000rpm and a maximum speed of 3600rpm. They are characterized by their small size, high precision and high speed.
The 90CB series alternating servo motor offers rated output powers from 500 W to 1200 W, rated torque up to 3.82 Nm, and a standard rated speed of 3000 rpm. Technical data such as insulation resistance (500 VDC, 100 MΩ min) and encoder resolution (2500 P/R) are listed for each model variant.
Installation notes cover proper wiring of power and encoder lines, brake connection requirements (24 VDC, 2 A supply), and precautions such as avoiding impact on the encoder during coupling work and ensuring shaft alignment to prevent vibration and bearing damage. Manufacturer contact information and product service details are also provided. This manual is written in Chinese.
| Rated output power | 500–1200 W |
|---|---|
| Rated torque | 1.59–3.82 Nm |
| Rated speed | 3000 rpm |
| Maximum speed | 3600 rpm |
| Weight | 2.9–4.5 kg |
| Encoder resolution | 2500 P/R |
| Insulation resistance | 500 VDC, 100 MΩ min |
The 90CB series is available with rated output powers of 500 W, 750 W, 1000 W, and 1200 W.
Connect the brake control lines to a 24 VDC power source capable of 2 A; the lines are not polarity‑specific.
