This document describes the features and characteristics of the typical adapter driver SH-30806, including parameters such as step angle, static phase current, phase resistance, phase inductance, holding torque, positioning torque, as well as technical data such as insulation resistance, axial clearance, radial runout, temperature rise, insulation strength, etc.

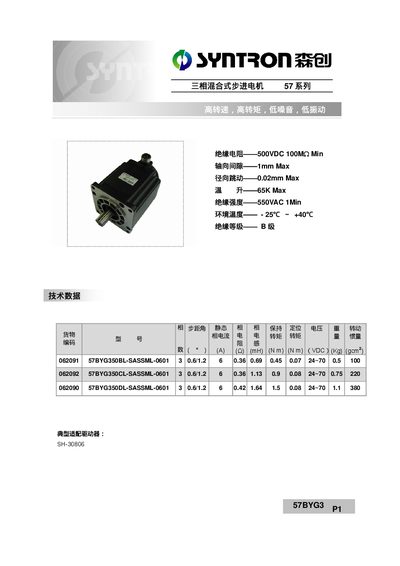

The 57BYG350 series is a three‑phase hybrid stepper motor with a 0.6° step angle and high torque capability. Technical data such as insulation resistance, temperature rise, and radial runout are listed for each model variant (BL, CL, DL).\n\nThe document includes wiring color codes, standard connection methods, and installation precautions, along with manufacturer contact information for technical support and sales. This manual is written in Chinese.
| Insulation resistance | 500 VDC, 100 MΩ min |
|---|---|
| Radial runout | 0.02 mm Max |
| Temperature rise | 65 K Max |
| Insulation strength | 550 VAC, 1 Min |
| Operating temperature range | -25°C ~ +40°C |
| Step angle | 0.6° |
The motor phases use black for U, brown for V, and blue for W.
The SH‑30806 driver is listed as a typical compatible driver.
The motor has a step angle of 0.6 degrees.
