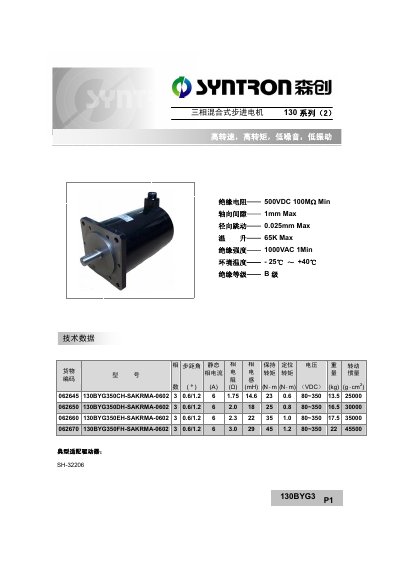

Three-phase hybrid stepper motor 130 series (2) high speed, high torque, low noise, low vibration
This manual provides technical data for the SynT3O 130 series hybrid stepper motor, including electrical ratings, step angle, and mechanical dimensions. It lists model variants such as 130BYG350CH‑SAKRMA‑0602 and their corresponding specifications.
Installation guidance is included, describing proper alignment, wiring of the three‑phase leads (U, V, W), and mounting tolerances. Manufacturer contact information and warranty notes are provided at the end of the document. This manual is written in Japanese.
| Rated Voltage | 500 VDC |
|---|---|
| Rated Current | 4 A / 5 A / 6 A |
| Step Angle | 0.6° |
| Maximum Operating Temperature | 65 K |
The motor is rated for 500 VDC.
The step angle is 0.6 degrees.
The motor can be rated at 4 A, 5 A, or 6 A.
