86BYG350 series high-speed, high-torque, low-noise and low-vibration three-phase hybrid stepper motors.
The 86 series three‑phase hybrid stepper motor from Hollysys offers high speed, high torque, low noise, and low vibration. It is available in both high‑voltage (80‑350 VDC) and low‑voltage (24‑70 VDC) versions with various current ratings.

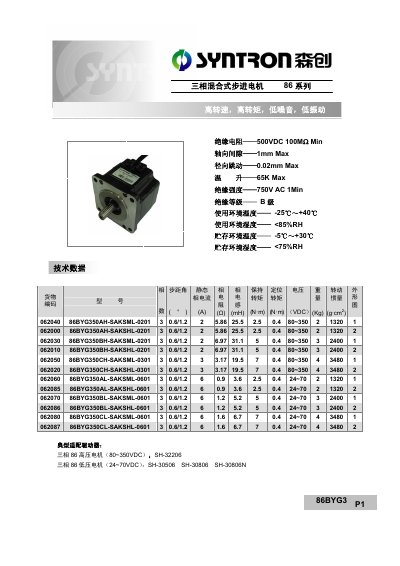

This manual includes detailed technical data such as insulation resistance, axial clearance, torque values, and environmental limits, as well as wiring colour codes, connection instructions, and customization options. It also lists typical compatible driver models and provides dimensional drawings for each variant. This manual is written in Chinese.
| Insulation resistance | 500 VDC, 100 MΩ Min |
|---|---|
| Axial clearance | 1 mm Max |
| Radial runout | 0.02 mm Max |
| Temperature rise | 65 K Max |
| Insulation strength | 750 V AC, 1 min |
| Insulation class | B |
| Operating temperature range | -25 °C to +40 °C |
| Operating humidity limit | < 85 % RH |
| High‑voltage range | 80‑350 VDC |
| Low‑voltage range | 24‑70 VDC |
For high‑voltage versions (80‑350 VDC) the recommended driver is SH‑32206; for low‑voltage versions (24‑70 VDC) the drivers SH‑30506, SH‑30806, and SH‑30806N are typical.
The motor can operate from –25 °C to +40 °C with ambient humidity below 85 % RH.
