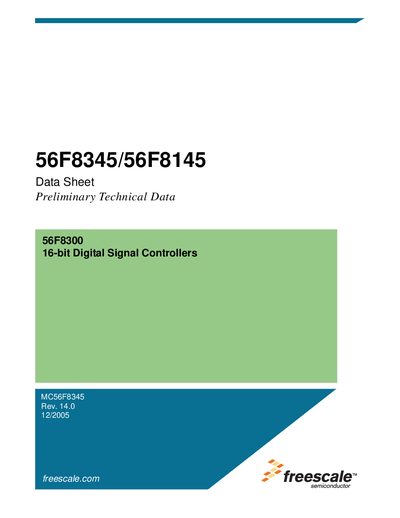

56F8345/56F8145 Data Sheet is a Freescale Semiconductor company's data sheet for 56F8345/56F8145. It provides detailed information about the characteristics and parameters of 56F8345/56F8145.
The 56F8345 and 56F8145 are 16‑bit digital signal controllers based on Freescale's 56800E core. They combine DSP performance with microcontroller peripherals, offering up to 60 MIPS at 60 MHz for the 56F8345 and 40 MIPS at 40 MHz for the 56F8145. The devices include extensive on‑chip memory, PWM modules, ADCs, CAN, and flexible I/O for motor‑control and industrial applications.
The datasheet provides detailed specifications, pin‑outs, memory maps, timing diagrams, and ordering information. It also covers power‑management features, security options, and design considerations for thermal and electrical design.
| Core frequency (56F8345) | 60 MHz |
|---|---|
| MIPS rating (56F8345) | 60 MIPS |
| Program Flash size | 128 KB |
| Program RAM size | 4 KB |
| Data Flash size (56F8345) | 8 KB |
| PWM modules (56F8345) | Two 6‑channel PWM modules |
| GPIO lines | Up to 49 |
The 56F8345 runs at 60 MHz and can execute up to 60 MIPS.
It includes two 6‑channel PWM modules.
The device provides 128 KB of program flash.
The controller offers up to 49 general‑purpose I/O lines.
