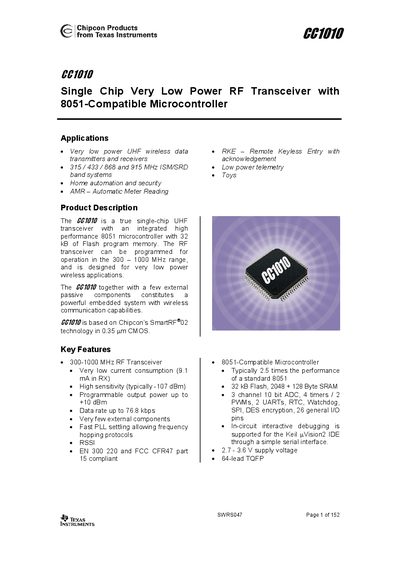

The CC1010 is a true single-chip UHF transceiver with an integrated high performance 8051 microcontroller with 32 kB of Flash program memory. The RF transceiver can be programmed for operation in the 300 – 1000 MHz range, and is designed for very low power wireless applications.
The CC1010 is a single‑chip UHF RF transceiver that integrates a high‑performance 8051‑compatible microcontroller with 32 kB of flash and 2 kB + 128 B of SRAM. It operates in the 300‑1000 MHz ISM/SRD bands and supports very low current consumption, making it suitable for wireless sensor, home‑automation, and low‑power telemetry applications.
The document provides detailed specifications, including absolute maximum ratings, recommended operating conditions, DC characteristics, electrical specifications, ADC performance, and RF section parameters. Mechanical data, package dimensions, and regulatory compliance information are also included.
| RF frequency range | 300‑1000 MHz |
|---|---|
| Supply voltage | 2.7 V – 3.6 V |
| Flash memory | 32 kB |
| SRAM | 2048 + 128 Byte |
| ADC resolution | 10 bits |
| RX current consumption | 9.1 mA |
| Programmable output power | -20 dBm to +10 dBm |
The CC1010 operates from 2.7 V to 3.6 V supply voltage.
It supports frequencies from 300 MHz to 1000 MHz.
The device includes 32 kB of non‑volatile flash memory.
