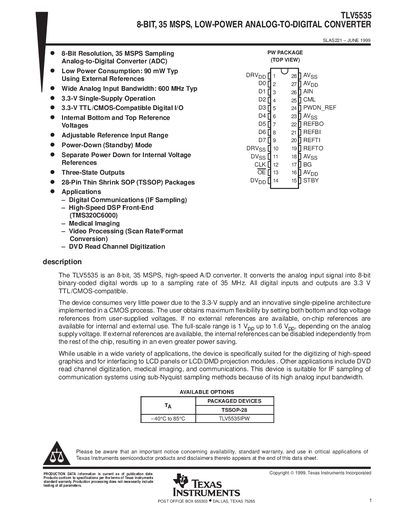

The TLV5535 is an 8-bit, 35 MSPS, high-speed A/D converter from TI. It converts the analog input signal into 8-bit binary-coded digital words up to a sampling rate of 35 MHz. All digital inputs and outputs are 3.3 V TTL/CMOS-compatible. The device consumes very little power due to the 3.3-V supply and an innovative single-pipeline architecture implemented in a CMOS process. The user obtains maximum flexibility by setting both bottom and top voltage references from user-supplied voltages. If no external references are available, on-chip references are available for internal and external use. The full-scale range is 1 Vpp up to 1.6 Vpp, depending on the analog supply voltage. If external references are used, the input range can be extended to 4 Vpp.
The TLV5535 is an 8‑bit, 35 MSPS analog‑to‑digital converter designed for low‑power operation (90 mW typ). It operates from a single 3.3 V supply, offers a wide analog input bandwidth of 600 MHz, and provides flexible reference options with internal and external references.
Typical applications include digital communications IF sampling, high‑speed DSP front‑ends, medical imaging, video processing, and DVD read‑channel digitization. The device is supplied in a 28‑pin thin‑shrink TSSOP package (TLV5535PW) suitable for compact board designs.
| Resolution | 8‑bit |
|---|---|
| Maximum Sampling Rate | 35 MSPS |
| Power Consumption (typical) | 90 mW |
| Supply Voltage | 3.3 V single‑supply |
| Package | 28‑pin TSSOP |
| Analog Input Bandwidth | 600 MHz |
| Effective Number of Bits (ENOB) at 4.2 MHz | 6.6 bits |
The TLV5535 can sample at up to 35 MSPS.
It operates from a single 3.3 V supply.
The device is available in a 28‑pin thin‑shrink TSSOP package.
The analog input bandwidth is specified as 600 MHz.
