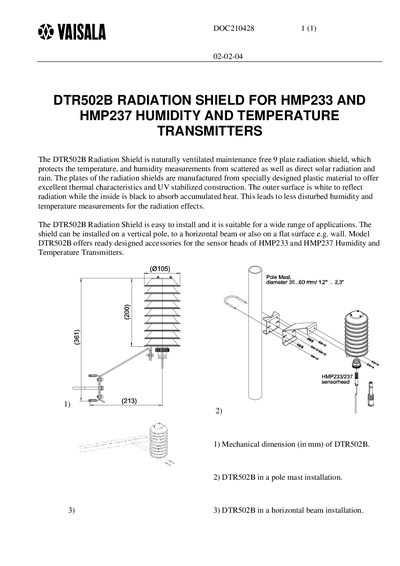

The DTR502B Radiation Shield is a naturally ventilated maintenance-free 9 plate radiation shield that protects temperature and humidity measurements from scattered and direct solar radiation as well as rain. The plates of the radiation shield are made from specially designed plastic material that offers excellent thermal characteristics and UV stabilized construction. The outer surface is white to reflect radiation while the inside is black to absorb accumulated heat. This leads to less disturbed humidity and temperature measurements due to radiation effects. The DTR502B Radiation Shield is easy to install and suitable for a wide range of applications. The shield can be installed on a vertical pole, horizontal beam, or flat surface such as a wall. Model DTR502B offers ready-designed accessories for the sensor heads of HMP233 and HMP237 Humidity and Temperature Transmitters.
The DTR502B Radiation Shield is a naturally ventilated, maintenance‑free 9‑plate shield made from UV‑stabilized plastic. Its design provides excellent thermal characteristics, with a white outer surface to reflect radiation and a black interior to absorb heat, ensuring accurate humidity and temperature measurements for HMP233 and HMP237 transmitters.
The shield can be installed on a vertical pole, a horizontal beam, or a flat surface such as a wall. It includes ready‑designed accessories for the sensor heads of the HMP233/HMP237 transmitters, and mechanical dimensions are provided for various mounting configurations.
| Number of plates | 9 |
|---|---|
| Outer surface color | White |
| Inner surface color | Black |
| Diameter range | 30–60 mm (12"–2.3") |
It is a naturally ventilated, maintenance‑free 9‑plate radiation shield made of UV‑stabilized plastic.
It can be mounted on a vertical pole, a horizontal beam, or a flat surface such as a wall.
