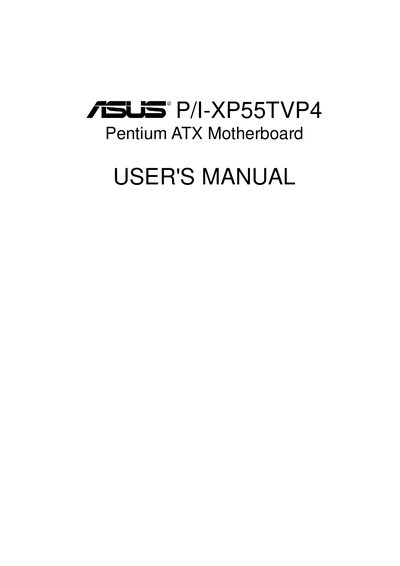

This document is the user manual for the ASUS P/I-XP55TVP4 Pentium ATX Motherboard. The manual provides detailed information about the features and characteristics of the product.
This manual covers everything needed to set up the ASUS P/I-XP55TVP4 motherboard, including a checklist of supplied items, step‑by‑step installation instructions, jumper settings, and detailed BIOS configuration. It also describes optional components such as the PCI‑SC200 SCSI card and the I‑A16C audio card.
The document lists the motherboard’s key features: Intel 430VX chipset, support for a range of Pentium, Cyrix and AMD‑K5 CPUs, up to 128 MB of 72‑pin SIMM memory, four ISA and four PCI slots, on‑board PCI Bus Master IDE controller, and DMI support for desktop management. Optional infrared (IrDA) and SCSI interfaces are also documented.
| Supported CPUs | Intel P54C Pentium 75‑200 MHz, Intel P55C Pentium 200 MHz, Cyrix P166+ Rev 2.7+, AMD‑K5 75‑133 MHz |
|---|---|
| Chipset | Intel 430VX |
| Memory support | 72‑pin SIMMs 4‑32 MB, up to 128 MB total, FPM and EDO |
| Expansion slots | Four 16‑bit ISA slots, four 32‑bit PCI slots |
It supports Intel P54C Pentium (75‑200 MHz), Intel P55C Pentium (200 MHz), Cyrix P166+ (Rev 2.7 or later) and AMD‑K5 (75‑133 MHz).
The board has four 16‑bit ISA slots and four 32‑bit PCI slots.
It accepts 72‑pin SIMMs of 4 MB to 32 MB (FPM or EDO) for a total of up to 128 MB.
The motherboard uses Intel’s 430VX chipset.
