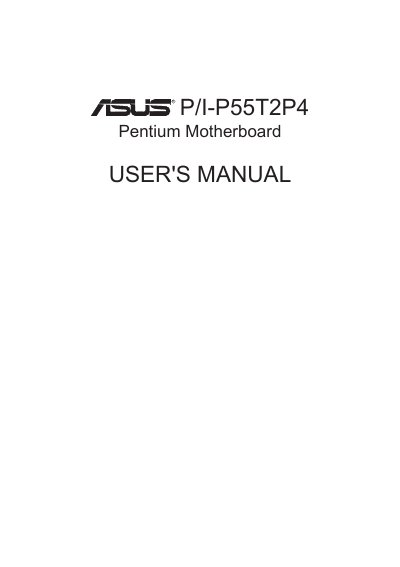

This document is the user manual for ASUS P/I-P55T2P4 Pentium Motherboard, providing specifications, usage instructions, and important notices.
This manual covers everything needed to install and configure the ASUS P/I-P55T2P4 motherboard, including a checklist of supplied items, detailed installation steps, and wiring diagrams. It also explains the BIOS software, DMI utilities, and optional expansion cards such as the PCI‑SC200 SCSI and I‑A16C audio cards.
The document describes the board’s key features: support for a range of Pentium, Cyrix, and AMD processors, Intel 430HX chipset, up to 256 MB of SIMM memory, multiple ISA and PCI slots, and upgradeable L2 cache. Safety and regulatory information, including FCC compliance and handling precautions, are also provided.
| Chipset | Intel 430HX PCI set |
|---|---|
| Expansion Slots | 3 × 16‑bit ISA, 3 × 32‑bit PCI, 1 × PCI/MediaBus 2.0 |
| L2 Cache | Onboard 256 KB, upgradeable to 512 KB via pipelined burst SRAM |
A shielded cable must be used for the monitor connection to meet FCC regulations.
