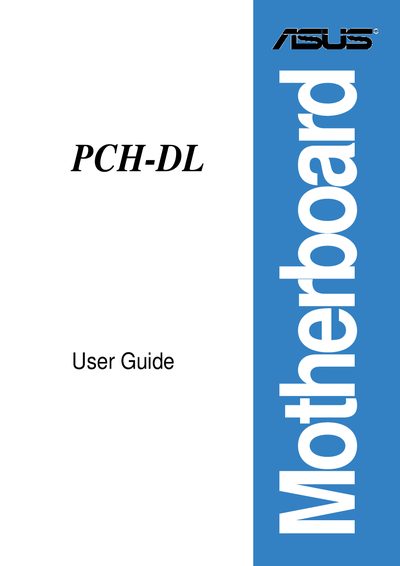

This document is the user guide for the PCH-DL motherboard by ASUSTeK COMPUTER INC. It describes the features and characteristics of the motherboard.
This guide explains how to install and configure the ASUS PCH-DL motherboard. It covers product introduction, hardware installation, power‑up procedures, BIOS configuration, and includes reference information such as block diagrams and specifications.
Safety information, FCC and Canadian compliance statements, and troubleshooting tips are also provided to help users avoid electrical hazards and ensure proper operation of the system.
| CPU | Intel Xeon |
|---|---|
| FSB Speed | 533 MB/s |
| Ethernet Controller | Intel 82547GI |
| AGP Slot | AGP Pro 4x/8x |
| PCI‑X Slots | 2 |
| IDE Ports | 2 |
| Serial ATA Ports | 2 |
| USB Ports | 4 USB 1.1/2.0 |
Disconnect the power cable from the electrical outlet, unplug all power cables before handling components, keep the area dry, and avoid short circuits.
Create a bootable floppy disk and run the BIOS update utility as described in the BIOS Setup chapter.
Yes, it complies with Part 15 of the FCC Rules as a Class B digital device.
