The P5V800-MX 2 is a motherboard from ASUS. It is a LGA 775 motherboard with two DDR DIMM sockets and one CPU socket. It supports up to 4GB of DDR2 memory and has a maximum CPU speed of 3.2GHz.

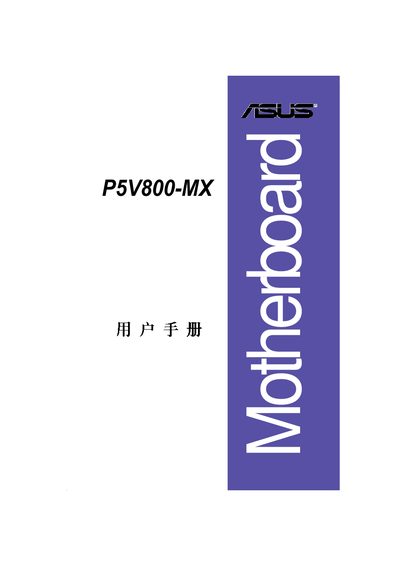

This manual covers the hardware overview of the P5V800‑MX motherboard, including component descriptions, connector locations, and safety precautions that must be observed before handling the board. It also details the BIOS setup procedures, such as enabling features, configuring boot options, and managing power settings.
Later sections describe how to install and configure RAID‑1 for data protection, as well as the supported components and drivers needed for proper operation. The guide includes step‑by‑step instructions, warning symbols, and troubleshooting tips to help users set up the system safely and efficiently. This manual is written in Chinese.
| Supported RAID level | RAID 1 |
|---|
During the installation process, select the RAID 1 option when prompted, confirm the setup screens, and follow the on‑screen instructions to create the RAID 1 array.
