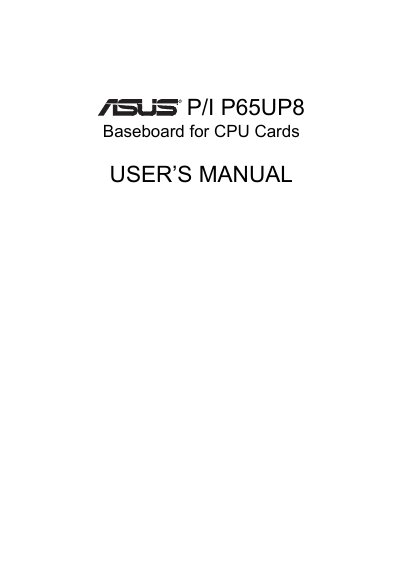

This document is the user manual for ASUS P/I-P65UP8 baseboard, describing the features and characteristics of the product.
This manual covers the ASUS P/I-P65UP8 baseboard, detailing its features, hardware layout, and step‑by‑step installation procedures. It includes checklists, jumper settings, memory installation, and video driver setup for various operating systems.
Additional sections describe the onboard VGA, SCSI, IDE controllers, and optional infrared module, as well as FCC compliance information and contact details for technical support.
| Processor support | Dual 150‑200 MHz Pentium Pro or dual 233‑333 MHz Pentium II |
|---|---|
| Onboard I/O processor | Intel i960RD with 32 KB NVRAM, 2 × 512 KB Flash EPROM |
| Video controller | Onboard S3 Trio64 VGA, upgradable to 2 MB DRAM |
| Power supply connectors | Both AT and ATX power connectors onboard |
| Expansion slots | Three 16‑bit ISA slots and seven 32‑bit PCI slots |
It supports dual 150‑200 MHz Pentium Pro or dual 233‑333 MHz Pentium II processors.
An onboard S3 Trio64 VGA controller is provided, upgradeable to 2 MB of DRAM.
