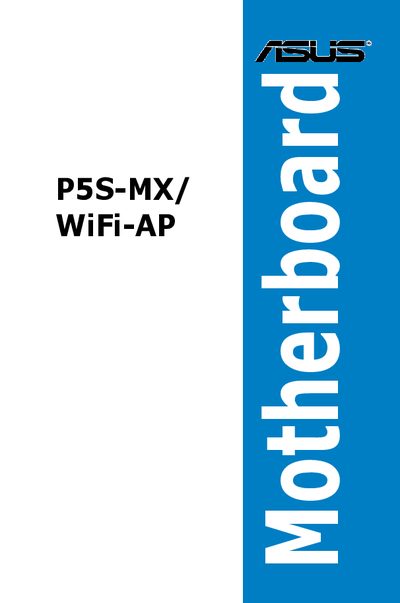

ASUS P5S-MX/WiFi-AP Motherboard User Manual

This manual introduces the features and characteristics of the P5S-MX/WiFi-AP ii motherboard

Brand: ASUS
Category: Network Switches
Document type: User Manual
Language: English
Pages: 90
File format: PDF
File size: 2 MB
Published: 06 April, 2012
Updated: 30 September, 2023
MD5 checksum: 49922180D904563E68044594CDD31749
PDF: ASUS P5S-MX/WiFi-AP Motherboard User Manual PDF

About this manual

This guide covers the hardware setup, BIOS configuration, and software support for the ASUS P5S-MX/WiFi-AP motherboard. It includes detailed chapters on product introduction, CPU installation, memory configuration, expansion slots, and connector layouts.

Safety information, FCC and Canadian compliance statements, and troubleshooting tips are also provided to ensure proper and safe operation of the system.

What's inside

Product introduction
BIOS setup
Software support
Safety information
FCC compliance
Appendix: CPU features
Installation procedures

Specifications

Supported CPU	Intel® Pentium® 4 LGA775 processors
SpeedStep Technology	Automatic (enabled in BIOS)
Hyper-Threading Technology	Enabled (set in BIOS)

Frequently asked questions

What should you do before relocating the system?

Disconnect the power cable from the electrical outlet before moving the system.

How do you enable Intel SpeedStep Technology?

Enter the BIOS Setup, go to the Advanced menu, and set the Intel SpeedStep Technology item to Automatic.

What FCC compliance class does the device meet?

The device complies with Class B digital device limits under Part 15 of the FCC Rules.
