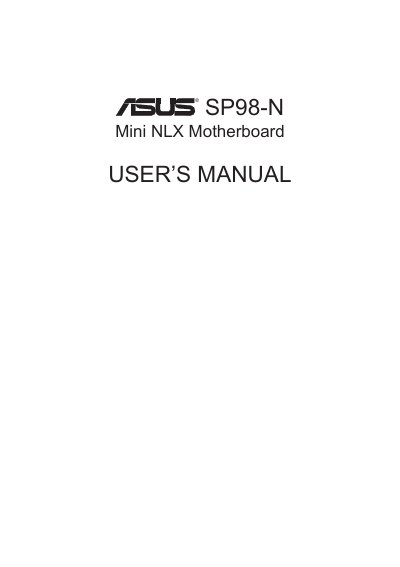

SP98-N Mini NLX Motherboard User's Manual, introducing the product features, usage methods, etc.
This manual introduces the ASUS SP98-N Mini NLX motherboard, outlines its key features such as the SiS 5598 PCIset graphics controller, optional Yamaha audio, Intel Ethernet, and support for a range of CPUs and memory modules. It also includes a detailed hardware‑setup guide covering the motherboard layout, riser card, connectors, and power‑connection procedures.
The BIOS setup section explains how to configure system settings, manage power options, and update the BIOS. Additional chapters list the software contents on the support CD, reference material for included operating‑system drivers, and an appendix with technical terms and optional features such as UltraDMA/33 and USB support.
| Form factor | Mini NLX |
|---|---|
| PCIset chipset | SiS 5598 with built‑in 64‑bit PCI 2D graphics controller |
| Integrated Ethernet controller | Intel 82558 LAN controller |
| Level‑2 cache | 512 KB pipelined burst SRAM |
It uses a custom‑designed Mini NLX form factor.
The board includes an Intel 82558 Ethernet LAN controller.
An optional Yamaha OPL3‑SA3 ISA audio chip provides 3D surround and positioning.
