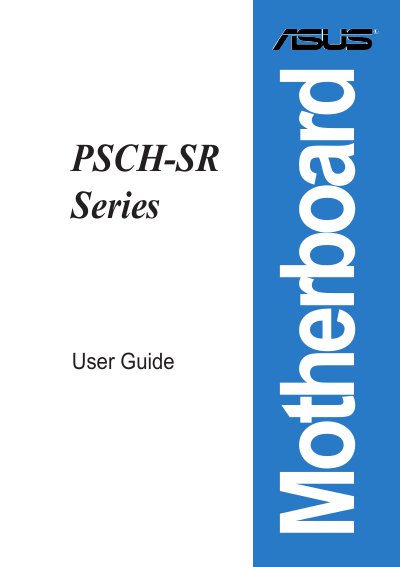

This is a user guide for the Asus PSCH-SR series motherboard
This user guide covers everything needed to install and configure the ASUS PSCH‑SR Series motherboard, including hardware installation, power‑up procedures, and BIOS setup. It also contains safety information, specifications, and reference diagrams.
The manual is organized into chapters on product introduction, hardware information, powering up, BIOS setup, and an appendix with reference data, making it a comprehensive resource for end‑users and technicians.
| CPU socket | Socket 478 |
|---|---|
| Supported CPU | Intel Pentium 4 Prescott with Hyper‑Threading |
| Memory slots | 4 x 184‑pin DDR DIMM sockets (up to 4 GB) |
| LAN ports | 2 x RJ‑45 ports |
| USB ports | 2 x USB 2.0 ports (rear panel) |
| Expansion slot | 1 x 3.3 V/64‑bit/66 MHz PCI‑X with Zero Channel RAID |
| Form factor | ATX (12 in × 9.8 in) |
It supports Intel Pentium 4 Prescott processors with Hyper‑Threading using a Socket 478.
The board provides two USB 2.0 ports on the rear panel, plus additional internal connectors.
Disconnect the power cable from the electrical outlet before relocating the system.
The motherboard can hold up to 4 GB of DDR memory across four DIMM slots.
