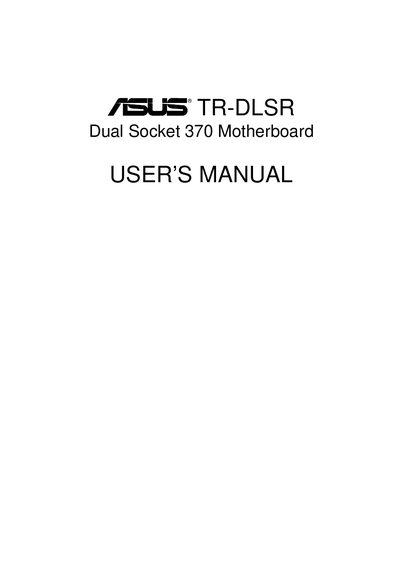

This document is the user manual for ASUS TR-DLSR Dual Socket 370 Motherboard. The manual describes the features and characteristics of the product.
This manual covers the ASUS TR-DLSR motherboard, a dual‑processor board designed for multi‑server environments. It details the components, specifications, and required accessories, and includes a checklist of items supplied with the product.
The document guides users through hardware installation, BIOS setup, and operating‑system driver installation for Windows, Unix, and Linux. It also provides FCC and Canadian compliance information, as well as troubleshooting tips for radio‑frequency interference.
| Processor support | Dual Socket 370 Intel Pentium III Tualatin up to 1.4 GHz |
|---|---|
| Chipset | ServerWorks LE 3.0 North Bridge and RCC Open South Bridge |
| Memory support | PC133 SDRAM with ECC, up to 4 GB registered ECC SDRAM |
| Onboard graphics | ATIRAGE‑XL PCI VGA controller, up to 4 MB PC100‑compliant 10ns SDRAM, 1280×1024 |
| Networking | Two Intel 82559 Fast‑Ethernet LAN controllers |
| SCSI controller | LSI 53C1010 Ultral160 64‑bit dual‑channel, up to 30 devices |
| IDE controller | PCI Bus Master IDE, two connectors supporting four IDE devices |
| PCI slots | One 64‑bit 66 MHz PCI slot |
| USB ports | Two stacked USB connectors |
| SMBus interface | System Management Bus for peripheral communication |
It supports dual Socket 370‑based Intel Pentium III Tualatin processors running up to 1.4 GHz.
Two stacked USB connectors are available on the board.
The board includes two Intel 82559 Fast‑Ethernet LAN controllers.
